R20BX3

Description

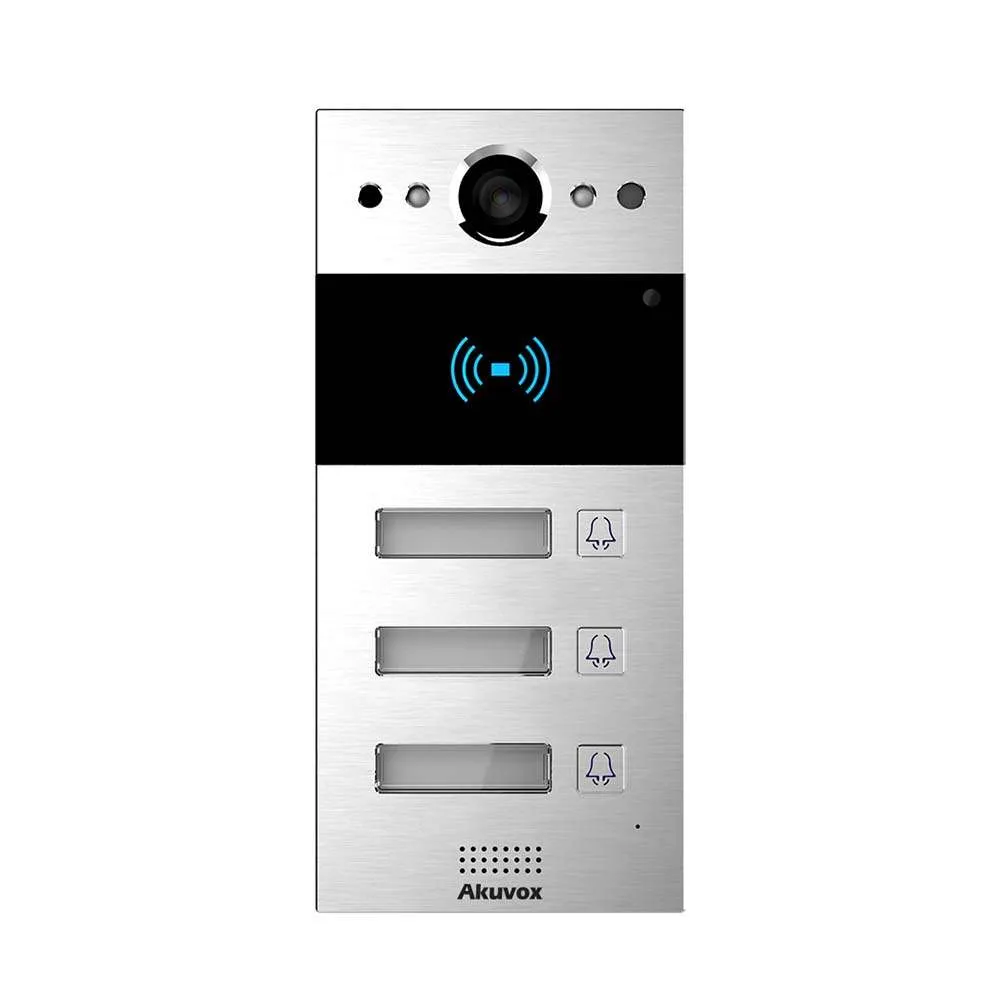

SIP Vandal-resistant Emergency Intercom Akuvox R20BX3 Features:

• Three call buttons with a nameplate
• Wide-angle camera: 110o (H), 58o (V)
• PoE (IEEE802.3af, Power-over-Ethernet)
• Two-way audio communication
• SIP standard for easy integration
• Complies with ONVIF standard
• Water-proof & Dust-proof: IP65
• 12V DC connector (if not using PoE)

Physical & Power:

• Front panel: Aluminum alloy
• Camera: 2M pixels, automatic lighting
• Light sensor, infrared sensor, and Wiegand port supported
• RS485 port
• RF card reader: 13.56MHz & 125kHz
• Relays out: 2, Inputs: 2
• Microphone: -40dB
• Speaker: 4Ω / 2W
• Ethernet port: RJ45, 10/100Mbps adaptive
• Installation: Flush-mounted or wall-mounted
• Flush-mounted DIM: 226x108x52mm
• Wall-mounted DIM: 185x85x24mm
• Working Humidity: 10~90%
• Working Temperature: -30°C ~ +65°C
• Storage Temperature: -40°C ~ +70°C

Audio & Video:

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833),
• Echo cancellation, voice activation detection, and comfort noise generator
• Sensor: 1/2.7”, CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
•  Video codec: H.264, H.265
• Video resolution: up to 1920x1080p
• Max. image transfer rate: 1080p – 25fps
• Viewing angle: 110°(H) / 58°(V)
• High-intensity IR LEDs

Deployment & Maintenance

•  Auto-Provisioning
•  Web management portal
• Web-based packet dump
• Configuration backup / restore
• Entry log export
• Access table export/import
• Firmware upgrade
• System logs (include door access logs)
